Termination and Breakout boards

Platform	Termination Boards
Termination Boards	Termination board, zero-footprint for 2410 : Model 2410TA Zero-footprint \| For model 2410
	PC/104+ stackable breakout board for model 301-06 : Model 300TA A set of standard PC peripherals for 301-06 CPU board \| 2 IDE channels for up to 4 devices \| Floppy interface \| 2 serial ports \| 1 parallel port
	Accessory board : Model 311TA	Image Not Available
	Accessory board : Model 314TA	Image Not Available
	Accessory board : Model 512TA	Image Not Available
	Camera Connection Box : Model 609TA Connectors for 16 composite video inputs, 8 video outputs \| 8 mechanical relay outputs with NC, NO selection \| 16 optically isolated digital inputs \| 8 open collector digital outputs \| Compatible with models 609, 615 and 617 \| Available without digital I/O
	Camera Connection Box : Model 609TA-ND Connectors for 16 composite video inputs, 8 video outputs \| 8 mechanical relay outputs with NC, NO selection \| 16 optically isolated digital inputs \| 8 open collector digital outputs \| Compatible with models 609, 615 and 617 \| Available without digital I/O
	Camera Connection Box : Model 609TB BNC's for 32 composite video inputs, 8 video outputs \| 32 electromechanical relay outputs with NC, NO selection \| 32 optically isolated digital inputs \| Compatible with models 609, 615 and 617 \| Power supply for video cameras
	Camera Connection Box : Model 609TC Provides 16 BNCs for camera connections \| Compatible with models 609, 615, 617, and 817 \| 2U height
	Camera Connection Box : Model 609TE Provides 16 BNCs for camera connections \| Compatible with models 609, 615, 617, and 817 \| Fits in the space of a CD/DVD player
	Camera Connection Box : Model 609TG Provides 16 BNCs for camera connections \| Compatible with models 609, 615, 617, and 817 \| 2U height for 19" rack mount enclosure
	24-position relay board with DIN snap rails : Model 7205TDIN	Image Not Available
	Solid State Relay Board : Model 720RB / 720RBDIN Sockets for 24 industry-standard SSR modules \| 3 boards can be chained to support up to 72 SSR modules \| Screw terminals for easy field wiring \| Mountable via standoffs (720RB) or DIN rail (720RBDIN) \| Connects to model 721
	Termination Board, 40 Contacts : Model 7409TB Connects eight sensors directly to any Sensoray Smart A/D or D/A board \| Low cost \| Screw terminals for easy field wiring \| Cold-junction sensor for thermocouples \| Small size-4.6 by 2 inches \| Connects to all Sensoray Smart A/D models and interface boards 421, 425, and 7405
	Termination Board, 40 Contacts : Model 7409TC/7409TDIN Screw terminals for easy field wiring of sensors \| Eight removable terminal blocks \| DIN rail mountable \| Integral cold junction sensor for thermocouples \| Large prototyping area for custom circuitry \| Connects to all Sensoray Smart A/D models and interface boards 421, 425, and 7405
	Termination Board, 40 Contacts : Model 7409TF Terminal board with reference sensor for thermocouples \| Connects to all Sensoray Smart A/D models and interface boards 421, 425, and 7405	Image Not Available
	Screw terminal board with DIN snap rails : Model 7502TDIN	Image Not Available
	Breakout board, 26-pin, DIN rail mountable : Model 7503TDIN Breaks out 26 conductor flat cable to screw terminals \| Supplied with DIN rail mounting hardware \| Compatible with encoder connectors on models 425, 427, and 626
	Breakout board, 50-pin, DIN rail mountable : Model 7505TDIN Provides screw terminals for field wiring \| DIN mounting rails available \| Compatible with models 421, 425, 626, 826, and 7421
	Breakout board, 40-pin, DIN rail mountable : Model 7506TDIN Breaks out 40 conductor flat cable to screw terminals \| No special tools required \| Low profile strain relief ejector latches \| Terminal blocks are individually numbered to correspond to the numbers on the 40-pin header \| DIN mounting rails available \| Compatible with Sensoray Smart A/D models (not for use with thermocouples) and interface boards 421, 425, 526, and 7405

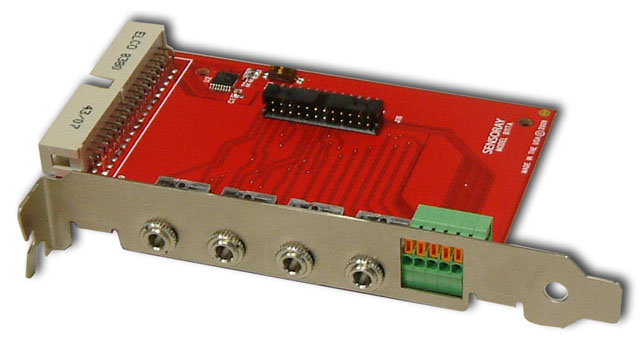

	Termination Board, 4 Audio In + 4 Digital I/O : Model 811TA-AUDIO

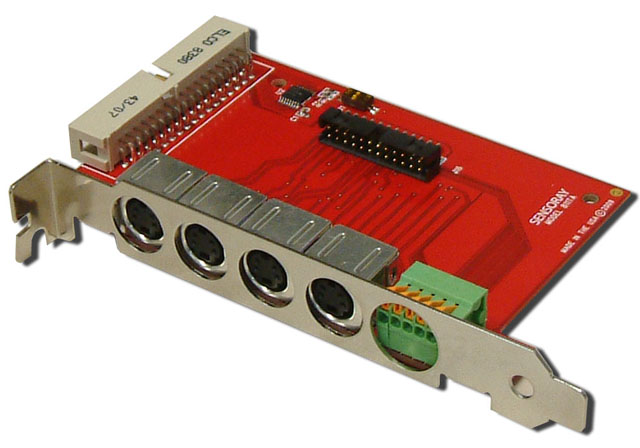

	Termination Board, 4 S-Video In + 4 Digital I/O : Model 811TA-SVIDEO
	16-channel distribution amplifier w/o enclosure : Model 817TA Takes one standard composite TV video signal and splits it into 16 buffered outputs
	16-channel TV distribution amplifier in an enclosure : Model 817TAS Takes one standard composite TV video signal and splits it into 16 buffered outputs
	Breakout (audio in and composite video in) : Model 911TA
	Cable for Model 911 breakout boards : Model 911TAC1
	Breakout (composite video in) : Model 911TB
	Breakout (audio in) : Model 911TC
